Find Model (petrol powered)

How to identify Atom products

Click on to see photo. Match colour of body with colour of machine you have – compare the check lists from 4 to 9 for Edgers, Tillers, Blowers, Engine Drills and Chainsaw Drill Attachments. When you have identified the machine, click on Model/Reference Number to see explosions and parts list of the product.

2		3	4	5	6	7	8	9. Comments
Model Number	Show Photo	Date of Manufacture	Blade Cover Colour	Spark Plug on Top or Bottom of Motor	Recoil Starter Front or Rear of Motor	Engine Brand	Petrol Tank on Top or Bottom of Motor	Inspect Edger and match up numbers to find the model number: 1. Colour of Body 4. Blade Cover Colour 5. Spark Plug 6. Starter position 7. Engine Brand 8. Petrol Tank position 9. Comments 10. Click on Model Number to take you to parts lists and explosions.
101		1994-1996	Black	Bottom	Front	Ryobi A31	Top	No cross brace between handles, square petrol tank on top.
103		1996-1998	Black	Bottom	Front	MTD A31	Top	Same as model 101 but with cross brace between handles. Square petrol tank on top.
104		1998-1999	Black	Bottom	Front	MTD A31-2	Top	Same as model 101 & 103 but with different carby/muffler cover. Square petrol tank on top.
410		1999-2004	Green	Bottom	Front	MTD A31-2	Top	Short main body, 450mm long. Square petrol tank on top.
415AST		2004-2006	Green	Bottom	Front	MTD 31AST	Top	Same as model 410 but rounded petrol tank on top, flip start, AST motor.
415KZ26		2007-2010	Green	Top	Rear	Zenoah 26cc Green	Bottom	Same as model 410 but with Zenoah 25cc motor. Extended body 500mm.
415A26FC		2010-2011	Green	Top	Rear	Atom 26cc FCS Green	Bottom	Same as model 415KZ26 but with an Atom 26cc FCS motor.
430		2011-2013	Grey	Top	Front	Atom 26cc SCF Green	Bottom	Lifting handle on top of body, single crank engine.
431		2015-2016	Grey	Top	Rear	Atom 26cc FC-3 Green	Bottom	Lifting handle on top of body, double crank engine.
435		2016-2018	Grey	Top	Rear	Atom 26FC-3 Green	Bottom	Wheel Black.Handles grey.
450		2011-2013	Grey	Top	Rear	Atom 26cc FCS Green	Bottom	Lifting handle on top of body, double crank engine.
453		2015-2016	Grey	Top	Rear	Zenoah 26cc Red	Bottom	Lifting handle on top of body, double crank Zenoah engine.
438		2018+	Grey	Top	Rear	Atom 26cc Blue	Bottom	Lifting handle on top of body, blue engine 25FC-4, 26FC-5.
440		2011-2016	Grey	Top	Rear	Honda GX25	Bottom	Lifting handle on top of body. Split body casing.
441		2016-2018	Black	Top	Rear	Honda GX25	Bottom	Wheel Black.Handles grey. Split body casing.
454		2016-2019	Grey	Top	Rear	Zenoah 26cc Red	Bottom	Wheel Black.Handles Grey.
458		2019+	Grey	Top	Rear	Atom 26cc HPE Red	Bottom	Wheel Black.Handles grey.
480		2018-2019	Grey	Top	Rear	Honda GX25	Bottom	Wheel back. Handles grips grey. Single piece body casing.

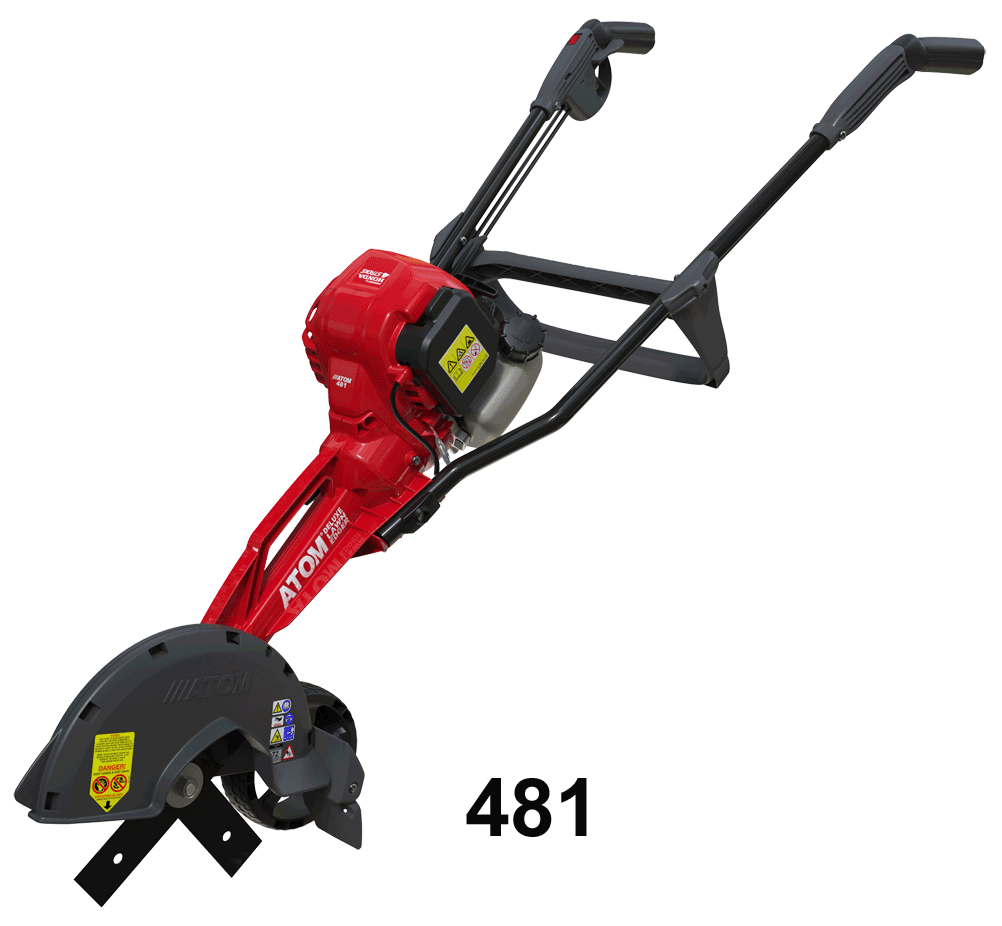

481		2019+	Grey	Top	Rear	Honda GX25	Bottom	Wheel back. Handles grips grey. Single piece body casing.
550		2006-2010	Red	Top	Rear	Honda GX25	Bottom	No lifting handle on top of body.
102		1996-1998	Black	Top	Rear	Zenoah G3KD	Bottom	No cross brace handles, no anti-vibration. Fuel primer fitted on tank. Metal fabricated wheel arm.
202		1999-2001	Black	Top	Rear	Zenoah GL34	Bottom	Cross brace fitted between handles, no anti-vibration. Metal fabricated wheel arm.
203		2001-2002	Black	Top	Rear	Zenoah GL34	Bottom	Cross brace fitted, no anti-vibration fitted. Metal fabricated wheel arm.
204		2003-2004	Black	Top	Rear	Zenoah GL34	Bottom	Anti-vibration handle fitted, no lifting handle on top of body. Metal fabricated wheel arm.
205		2004-2010	Black	Top	Rear	Zenoah GL34	Bottom	Anti-vibration handles fitted, no lifting handle on top of body. Plastic wheel arm.
501		2000-2003	Black	Top	Rear	Honda GX31	Bottom	Anti-vibration handles fitted, no lifting handle on top of body. Metal fabricated wheel arm.
505		2003-2004	Black	Top	Rear	Honda GX31	Bottom	Anti-vibration handles fitted. Plastic wheel arm.
506		2004-2010	Black	Top	Rear	Honda GX35	Bottom	Anti-vibration handles fitted. Plastic wheel arm.
560		2011-2015	Grey	Top	Rear	Honda GX35	Bottom	Long lifting handle on top of body. AV handles fitted. Plastic wheel arm.
561		2016+	Grey	Top	Rear	Honda GX35	Bottom	Grey handles with black rubber and AV handles.

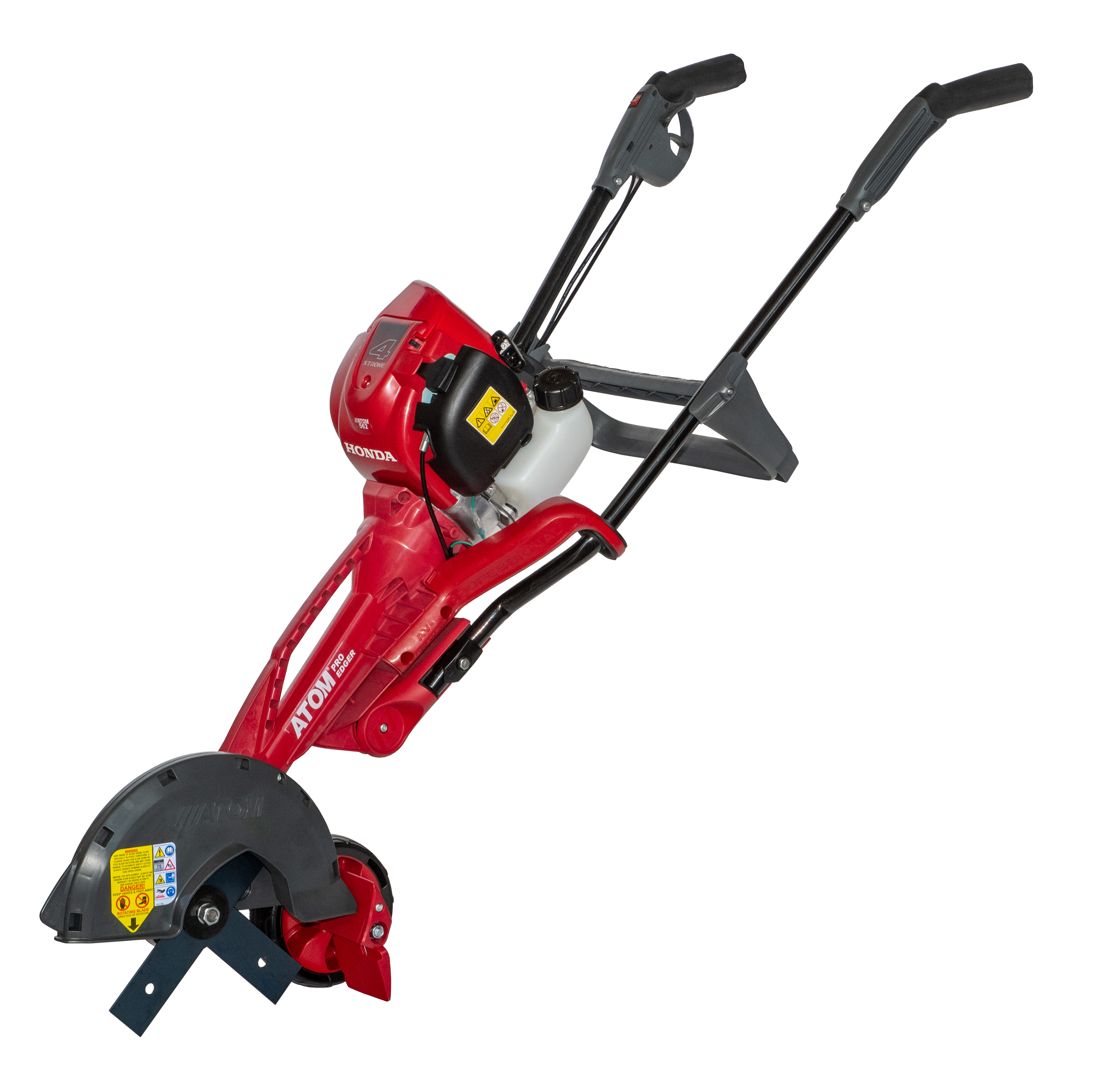

562		2021+	Grey	Top	Rear	Honda GX35	Bottom	Grey handles with black rubber. AV handles fitted. Single piece body casing.
570		2011-2015	Black	Top	Rear	Zenoah GL34	Bottom	Short ribbed handle on top of body, AV fitted. Plastic wheel arm.
580		2011-2016	Grey	Top	Rear	Mitsubishi TLE33	Bottom	Long lifting handle on top of body. AV handles fitted. Plastic wheel arm.
581		2016-2019	Grey	Top	Rear	Mitsubishi TLE33	Bottom	Grey handles with black rubber. AV handles fitted.

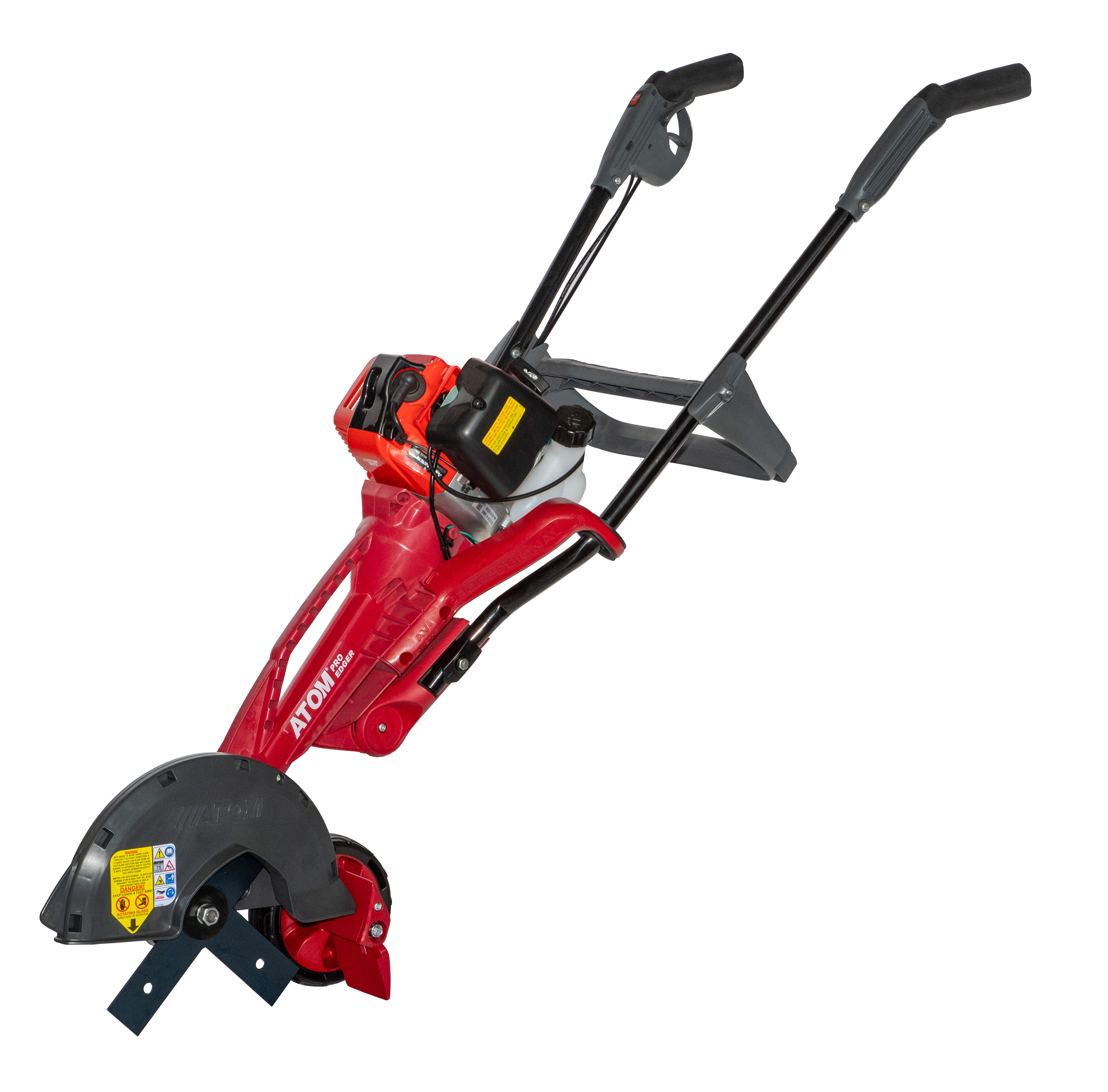

582		2021+	Grey	Top	Rear	Mitsubishi TLE33	Bottom	Grey handles with black rubber. AV handles fitted. Single piece body casing.

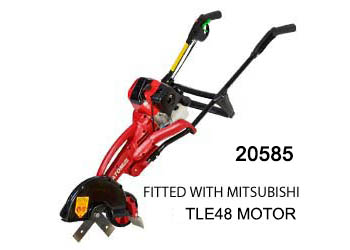

585		2018+	Grey	Top	Rear	Mitsubishi TLE48FD	Bottom	48cc SUPER-PRO 2-Stroke high power professional. AV handles fitted.

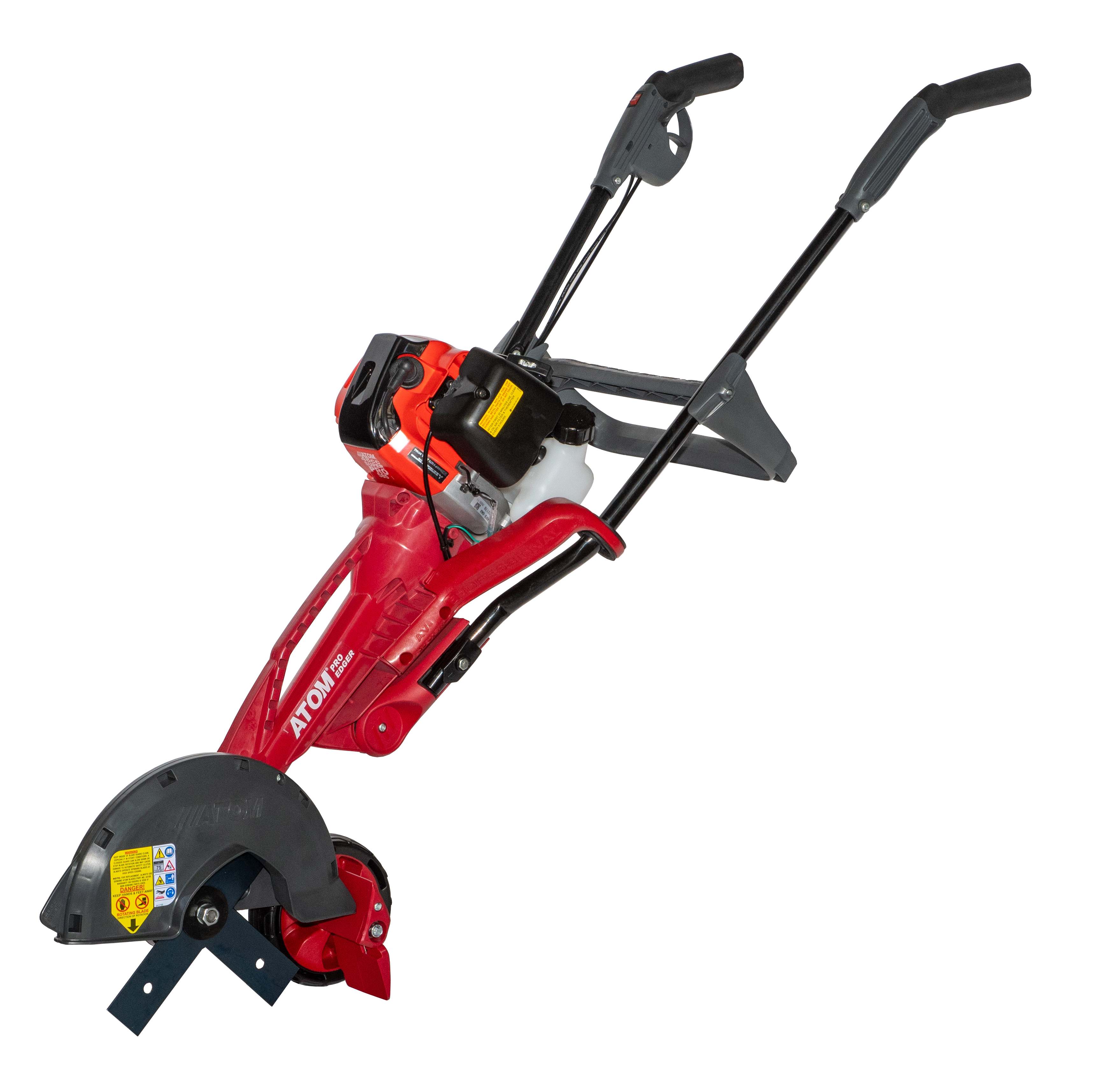

586		2021+	Grey	Top	Rear	Mitsubishi TLE48	Bottom	Grey handles with black rubber. AV handles fitted. Single piece body casing.
590		2023	Grey	Top	Rear	Honda GX50	Bottom	Grey handles with black rubber. AV handles fitted. Single piece body casing.
601		2005-2011	Red	Top	Rear	Zenoah GL34	Bottom	Golf bunker edger, extra long single blade
602		2012-2015	Red	Top	Rear	Mitsubishi TLE33	Bottom	Golf bunker edger, extra long single blade
650		2005-2015	Red	Top	Rear	Honda GX35	Bottom	Golf bunker edger, extra long single blade
301		1995-2009	Black	-	-	Atom 240V	-	All yellow body
310		2009-2019	Grey	-	-	Atom 240V	-	All green body with carry handle on top.

Identifying Atom Tillers

2		3	4	5	6	7	8. Comments
Model Number	Show Photos	Number of Tines	Colour of Body	Date of Manufacture	Tine cover Gap	Motor/Engine Brand	Top View of Tine Covers
738		4T	Grey	2010-2017 Green	88	Atom 26FC-3 Green
738		6T	Grey	2018+ Blue	88	Atom 26FC-4 Blue Atom 26FC-5 Blue
756		4T	Grey	2019+	88	Honda GX25
756		6T	Grey	2019+	88	Honda GX25

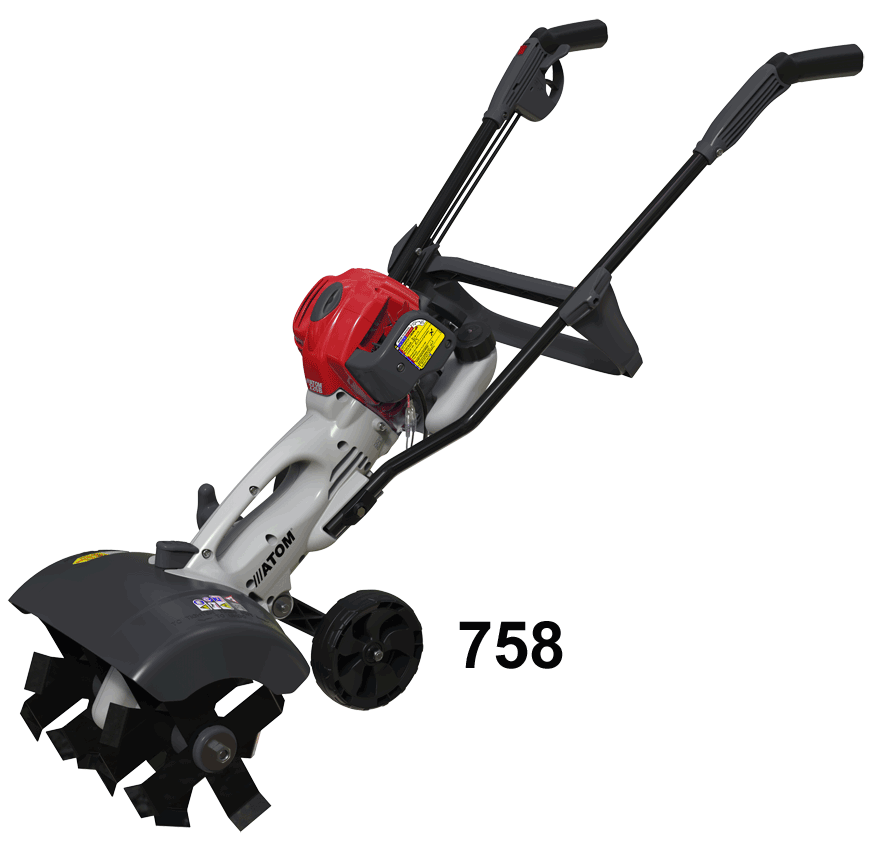

758		4T	Grey	2019+	88	Red Atom 26HPE High Performance Engine
758		6T	Grey	2019+	88	Red Atom 26HPE High Performance Engine
710		4T	Green	2015-2019	88	Electric Motor
710		6T	Green	2015-2019	88	Electric Motor
730		4T	Green	2010-2011	88	Atom 26SCF
730		6T	Green	2010-2011	88	Atom 26SCF
731		4T	Green	2010-2014	88	Atom 26FC -3
731		6T	Green	2010-2014	88	Atom 26FC -3
740		4T	Red	2010-2019	88	Honda GX25
740		6T	Red	2010-2019	88	Honda GX25
750		4T	Green	2010-2015	88	Atom 26FCS Green
750		6T	Green	2010-2015	88	Atom 26FCS Green
753		4T		2010-2019	88	Zenoah 26
753		6T		2010-2019	88	Zenoah 26
704		4T	Green	2009-10	35	Zenoah 26
706		6T	Green	2009-10	35	Zenoah 26
714		4T	Green	2010-2011	35	Zenoah 26
716		6T	Green	2010-2011	35	Zenoah 26
804		4T	Red	2009-10	35	Honda GX25
806		6T	Red	2010-2011	35	Honda GX25

Identifying Atom Leaf Blowers

	Model Number	Show Photos	Date of Manufacture	Colour of body	All Atom Blowers are identical except for gasoline engines fitted:
	838		2018+	Grey	838 is fitted with the Atom 2-Stroke commercial blue engines 26FC-4 and later models 26FC-5
	855		2016+	Red	855 is fitted with the Atom enhanced Honda GX25 4-Stroke engine
	858		2019+		858 is fitted with the commercial Atom 26HPE High Performance red engine
SUPER SEDED	835		2015-2016	Green	835 is fitted with the Atom 26FC-3 2-Stroke engine

Identifying Atom Drillmaster Engine Drills

Model Number	Show Photos	Date of Manufacture	Colour of Body		Description – Click on ‘Show Photo’ eye to see image and identify model.	RPM
938		2018+	Blue	Grey	Atom 26FC-4 and 26FC-5 commercial 2-Stroke blue engine	264	Engine Drill Auger speed and power vary according to type of engine fitted

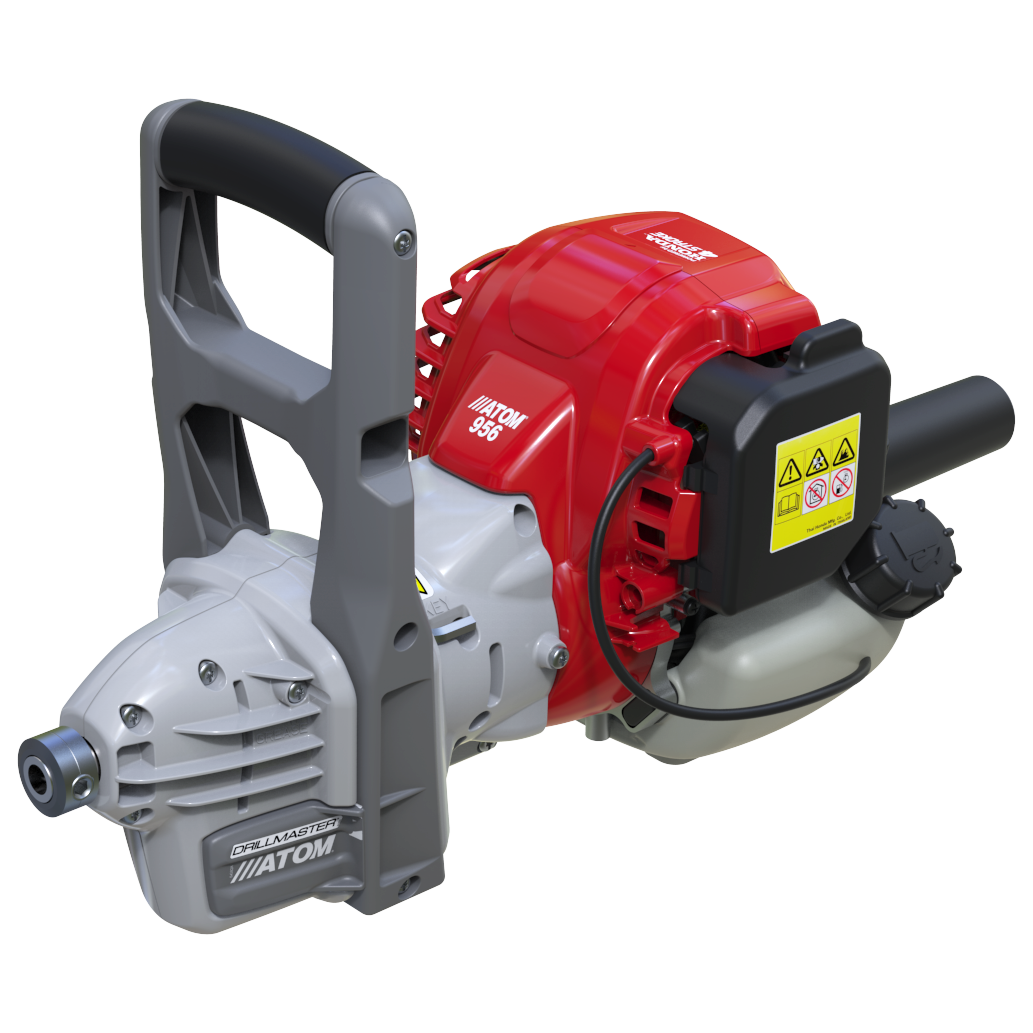

956		2019+	Red	Grey	Model 956 is fitted with the Honda GX25 4-Stroke 25cc engine	385

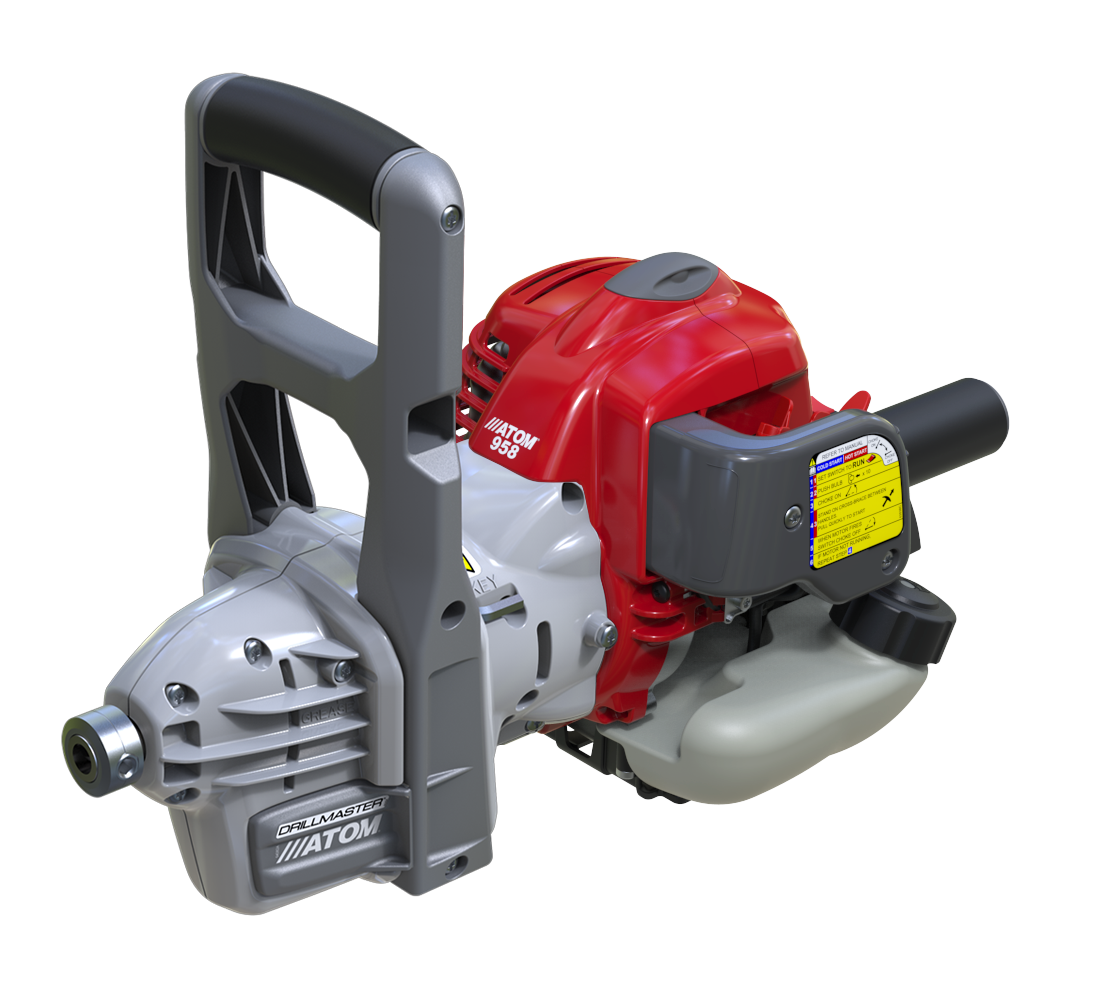

958		2019+	Red	Grey	Model 958 with Atom Red 26HPE High Performance commercial engine 26HPE	385

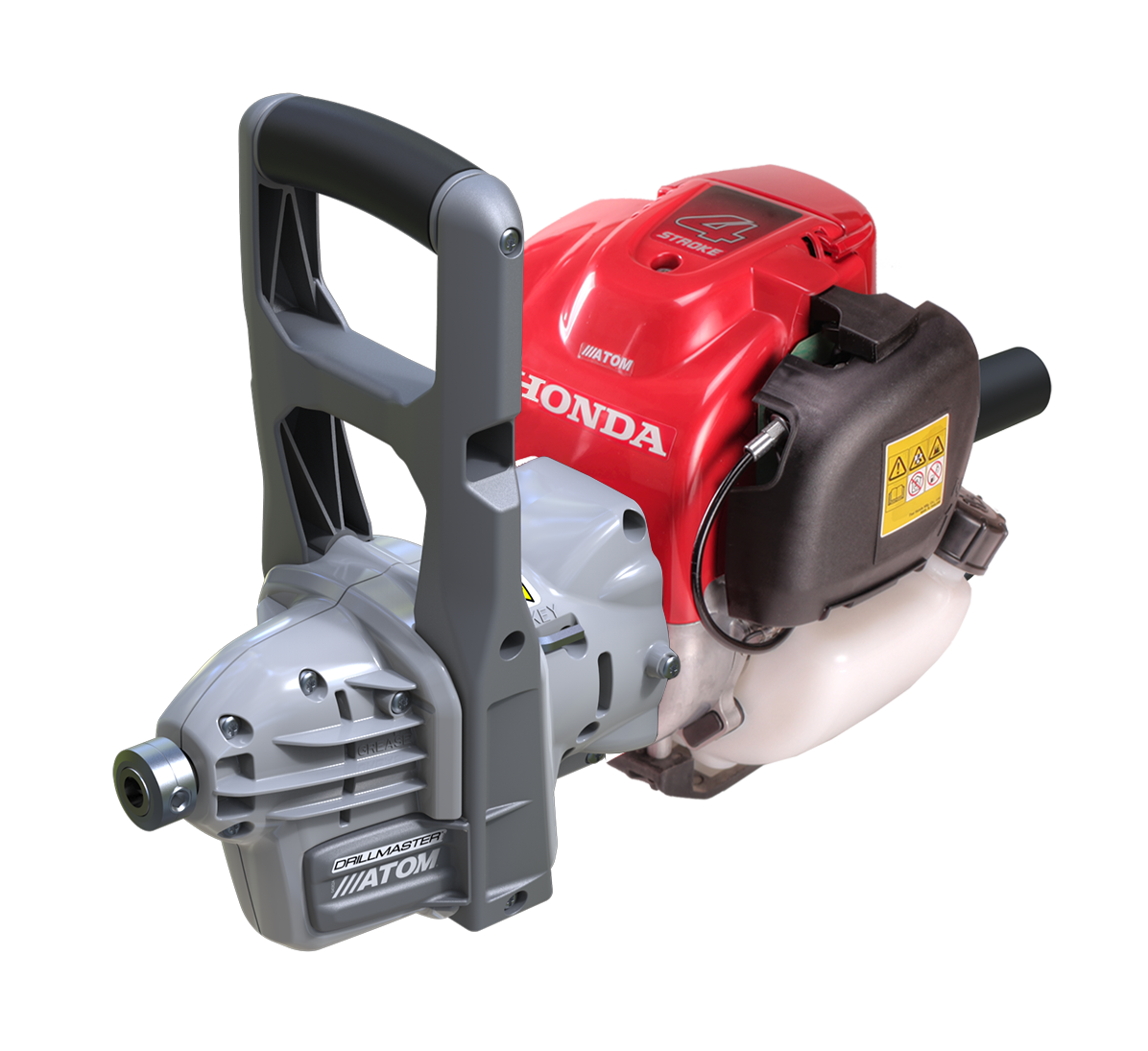

960		2015+	Red	Grey	Model 960 is fitted with the Honda GX35 4-Stroke 35cc engine	530
980		2015-2019	Red	Grey	Model 980 is fitted with the Mitsubishi TLE33 2-Stroke 33cc engine	530

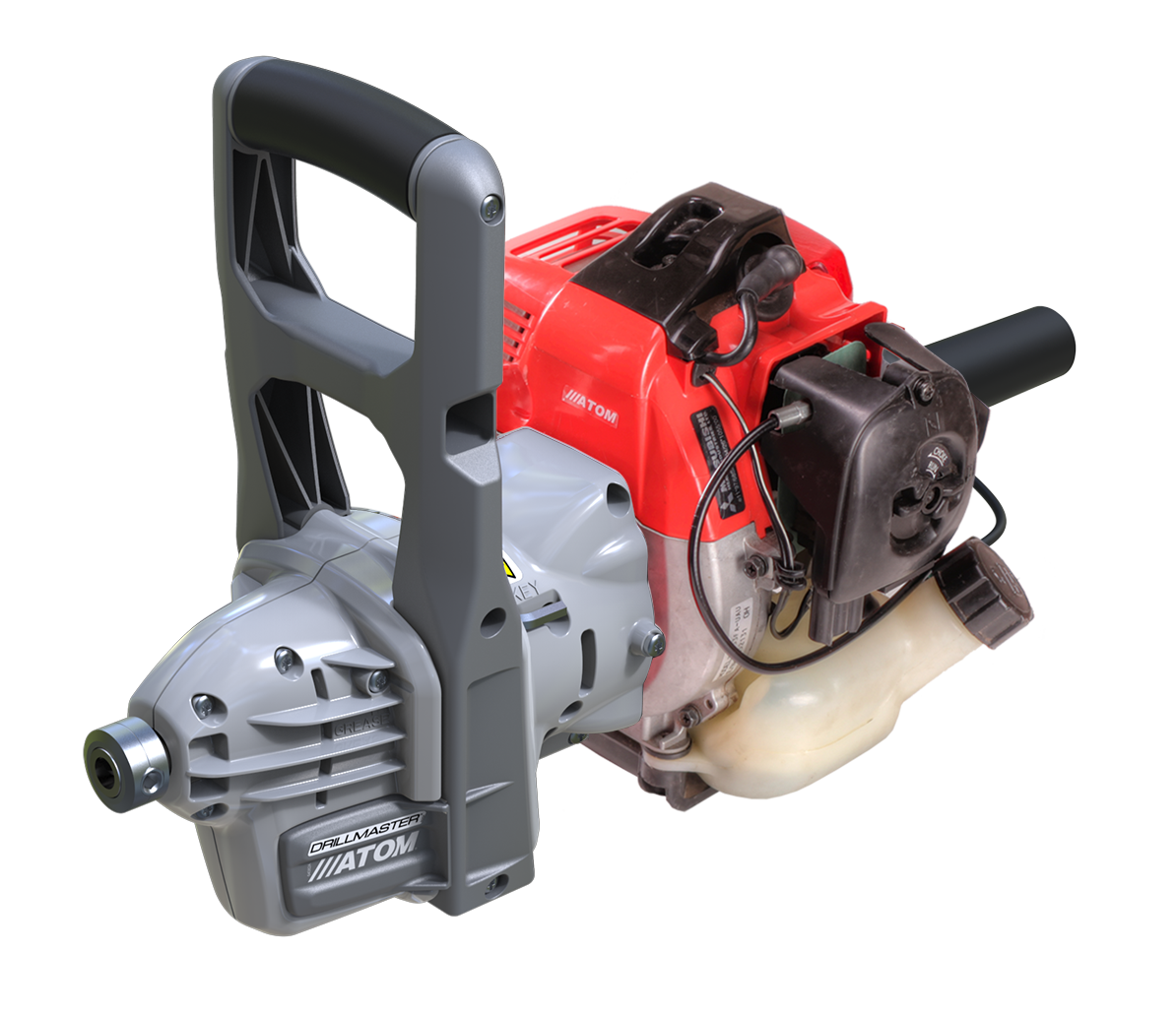

985		2017+	Red	Grey	Model 985 is fitted with the Mitsubishi TLE48 2-Stroke 48cc engine	750
990		2023	Red	Grey	Model 990 is fitted with the Honda GX50 4-stroke 50cc engine.	550
931		2015-2018	Green		Model 931 is fitted with the Atom FCS 26cc 2-Stroke engine	264
953		2015-2019	Red	Grey	Model 953 is fitted with the Zenoah 26cc 2-Stroke engine	385
955		2015-2019	Red	Grey	Model 955 is fitted with the Honda GX25 4-Stroke 25cc engine	385

Identifying Superseded Atom Chainsaw Drill Attachments

	Reference Number	Show Photos	Date of Manufacture	Colour of Body	Comments
	800		1979-2018		The Atom Chainsaw Drill Attachment was first introduced in 1963. All models follow the unique Automatic Reverse Drilling System. Parts for early models available are drive chains, sprockets and guide bars. Some parts are available for models prior to the Auger Stop model introduced in 1994. Due to the large quantity of attachments sold over many years and upgrades click on Reference No. 800 which is a composite explosion drawing and parts list of all Auger Stop and some early models. Many parts are interchangeable between models and will have a substitute number. If part is no longer available (NLA) it will show up in the parts list below the explosion. Trouble shooting is also included in this section.

Identifying Current and Old Engines

Reference Number	Show Photos	Date of Manufacture	Colour of Engine	Parts List Number	Description – Click on ‘Show Photo’ eye to see image and identify model
760-1		1994-2004	Green		Ryobi MTD A31-1 and 2 (Fuel tank on top of engine and recoil at front)
760-2		2004-2007	Green		Ryobi MTD AST A31-3 (Fuel tank on top of engine and recoil at front)
761		1994-2000	Red		Zenoah 33cc Model No GK3
		2000	Red		Honda GX31 – parts may be available from Honda dealers only for this model
762		2001-9	Red		Zenoah 34cc Model G34L
763		2009-2018			Zenoah KZ26 26cc (Green to late 2014 then Red from 2018+)

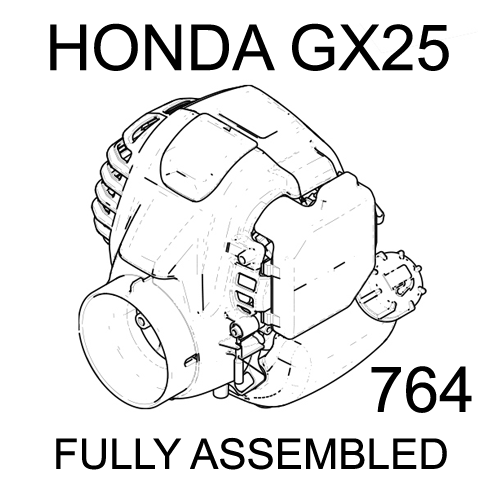

764		2001-2018	Red	65139A	Honda GX25 – 25cc
765		2001+	Red	48002-EU5	Honda GX35 – 35cc
766		2010-2016	Green	65195A	Atom 26SCF – Single Crank (Recoil at front)
767		2010-2016	Green	65134A	Atom 26FCS - 26FC-3
768		2010+	Red	63869A	Mitsubishi TLE – 33cc
769		2009-2018	Green		Atom Electric Pod Motor
770		2018+	Red	65007A	Mitsubishi 48cc 2-Stroke
771		2017-2018	Blue	65195A	Atom 26FC-4 commercial engine
772		2019+	Blue	65195A	Atom 26FC-5 commercial engine
773		2019+	Red	65196A	Atom 26cc HPE High performance commercial engine
774		2018+	Red	65139A	Honda GX25 25CC SATS engine

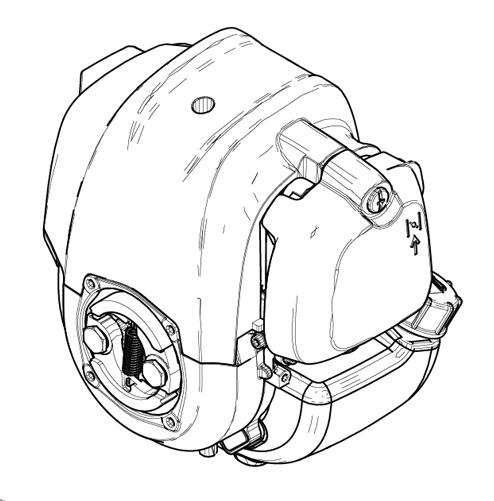

775		2022+	Red	65310A	Honda GX50 50CC SSE3 engine
